MCDFL DIY Large Wall Clock Metal Mechanic Accessories Models Motor Extra Long Hands Decorated Home Decor Items Interior Design

MCDFL DIY Large Wall Clock Metal Mechanic Accessories Models Motor Decorated Home Decor Items with Free Shipping Interior Design

Are you bored with the blank wall of your room? This Simple Large 3D Clock Kits will add a modern twist to your living room, bedroom or office. It is also a best gift for your families, colleagues and friends. This is a big bonus of large clock assembly kit from MCDFL for DIY LOVER to pick out the style that look best to create your own clock project. Save an expensive clock and make you own unique clock with wonderful memories. Choose according to the style of interior decoration, your friend will see this great ornament and praise it.

Specifications:

Clock Mechanism Model Number: 227S I Shaft BlueBox
Certification: CE & RoHS
Time Keeping Accuracy: ±1 sec/day at 1.5V, 23℃
Motion: Sweep Silent Movement
Material: Aluminum, Metal, Plastic
Colors: Black, Silver, Gold
Size: S, L
Battery Type: 1.5V AA size (IEC R6) Carbon Battery 1 piece (Not Included)

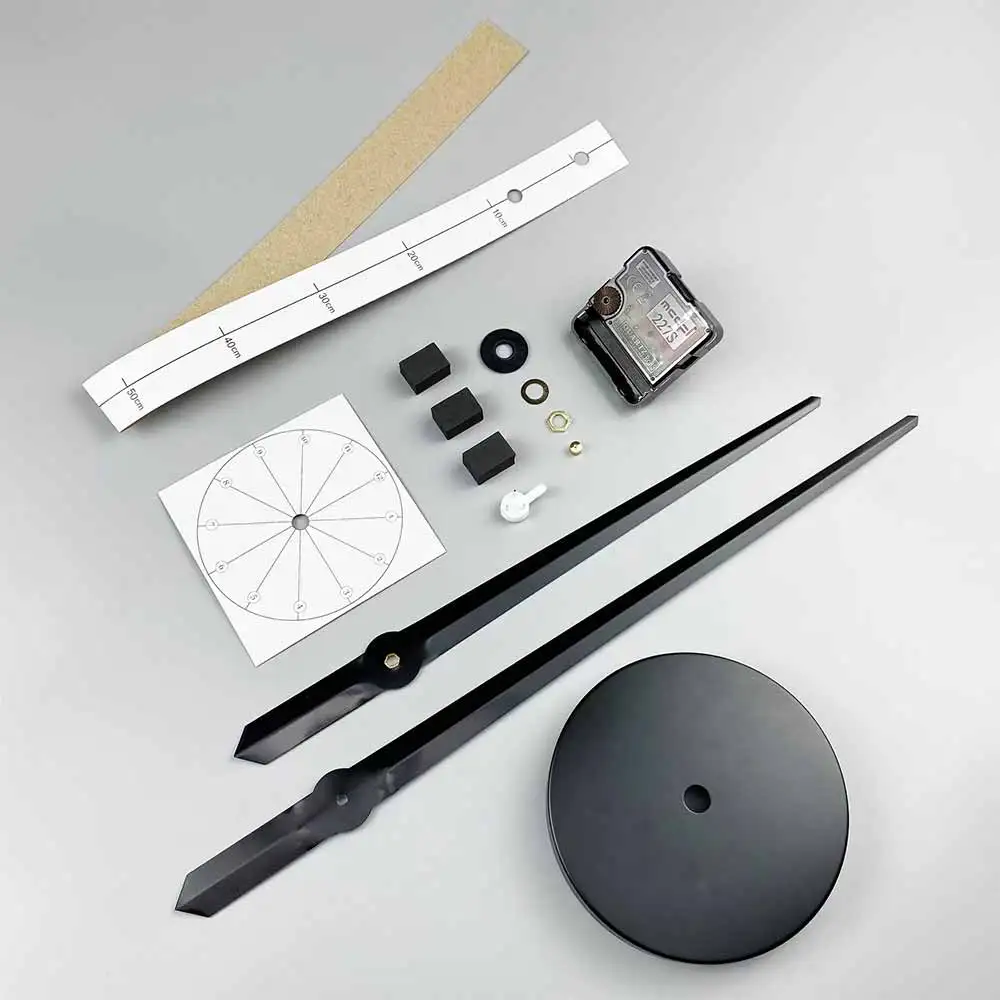

Package Included:

1 x High Torque I Shaft Silent Clock Mechanism
1 x Large Hour Hand
1 x Large Minute Hand
1 x Clock Dial
1 x Template Paper Ruler
1 x Minute Hand Fixing Nut
1 X Plastic Washer
1 X Brass Washer
1 X Brass Nut
1 x Plastic Mounting Hook
3 x EVA Foam Hanging

227S High Torque I Shaft Clock Mechanism

Case Dimensions: Approx. 56 x 56 x 16 mm (2.2 x 2.2 x 0.63 inch)
Shaft Length: 19 mm (0.75 inch)
Thread Length: 6 mm (0.24 inch)
Suitable for: 1 – 3 mm (0.04 – 0.12 inch) thickness clock dial
Thread Diameter: 7.8 mm (0.31 inch)
Hour Hand Shaft Diameter: 5.05 mm (0.20 inch)
Minute Hand Shaft Diameter: 3.90 mm (0.15 inch)

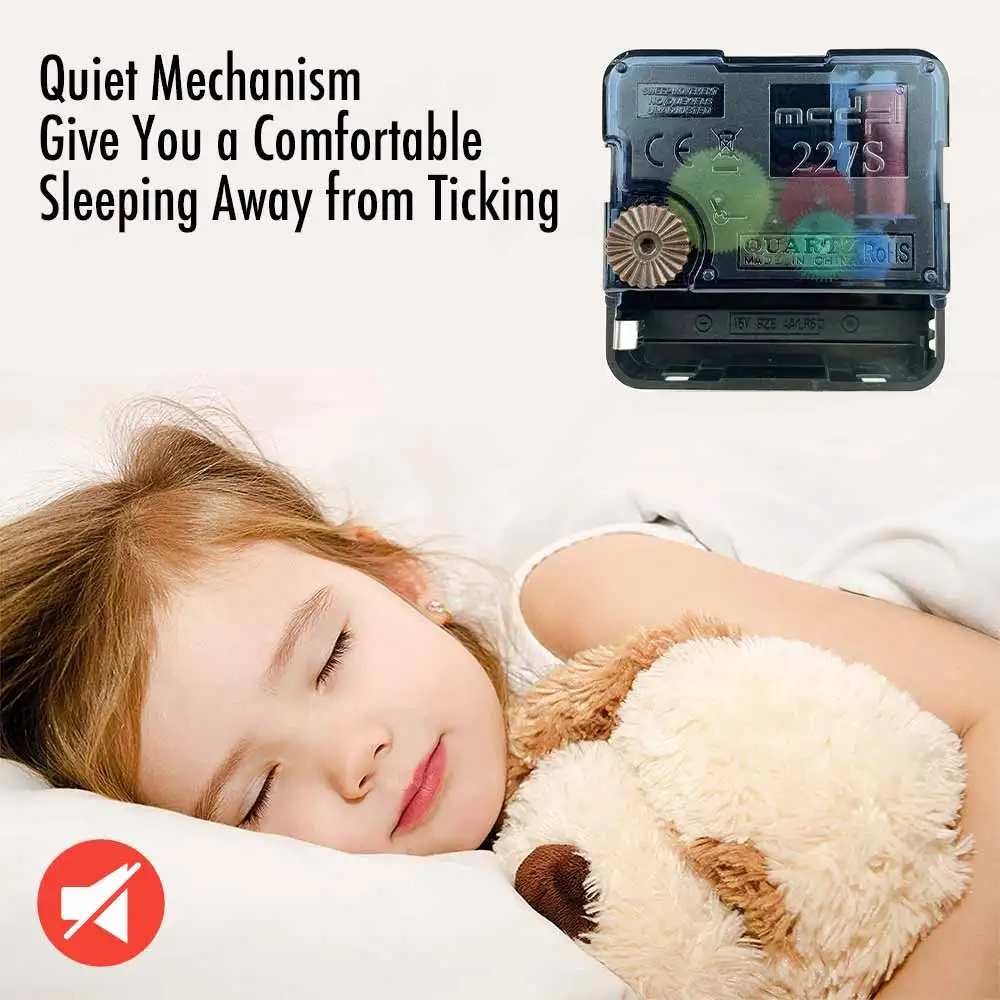

Precise Time-keeping Sweep Silent Movement

Non ticking & silent, accurate time, long service life, save energy. Features High precision the daily precision is more or less 1 second, which ensures watchmaker’s accuracy and dependability. Powered by a AA battery, passes the CE certification, can effectively reduce energy consumption and prolong life. Sweep motion with non ticking sound, silence during operation, give you a quiet night.

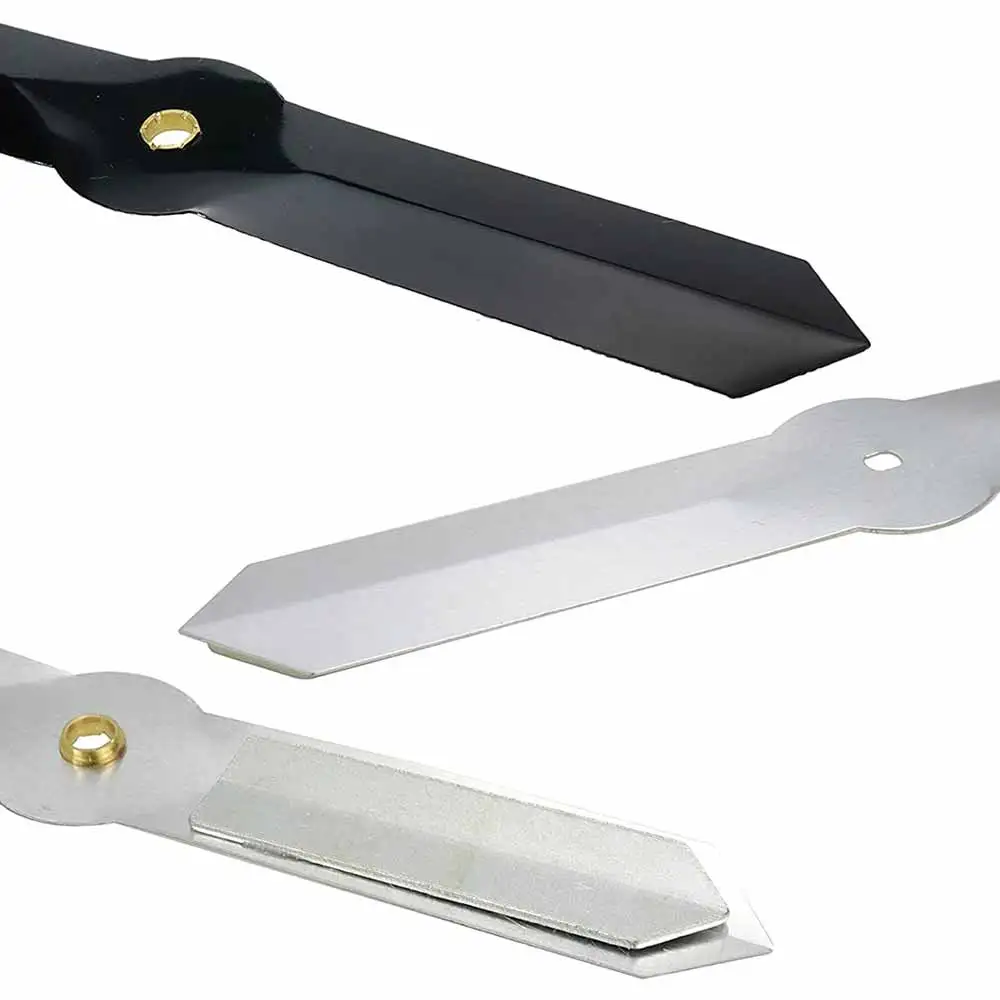

3 Color & 2 Size Large Clock Hands

Material: Aluminum, metal ( Please avoid too much pressure while install to prevent bending )
Color: Black, Gold, Silver
Size: 33.5cm, 39cm

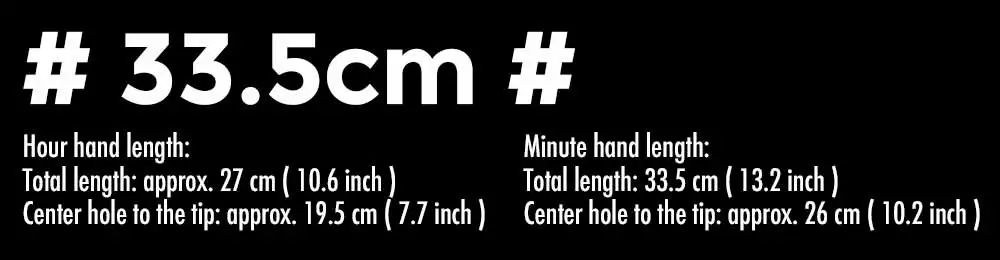

# 33.5cm #

Hour hand length:
Total length: approx. 27 cm ( 10.6 inch )
Center hole to the tip: approx. 19.5 cm ( 7.7 inch )
Minute hand length:
Total length: 33.5 cm ( 13.2 inch )
Center hole to the tip: approx. 26 cm ( 10.2 inch )

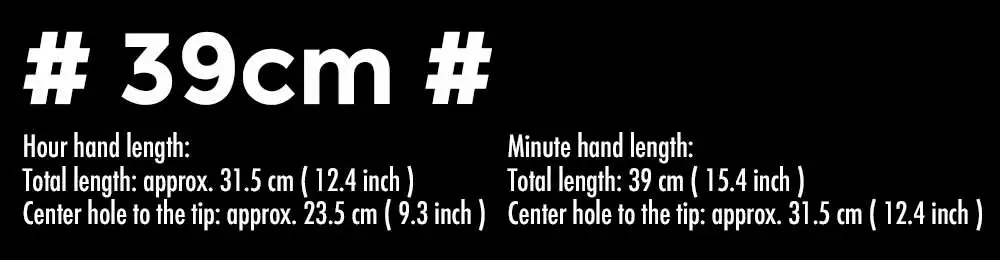

# 39cm #

Hour hand length:
Total length: approx. 31.5 cm ( 12.4 inch )
Center hole to the tip: approx. 23.5 cm ( 9.3 inch )
Minute hand length:
Total length: 39 cm ( 15.4 inch )
Center hole to the tip: approx. 31.5 cm ( 12.4 inch )

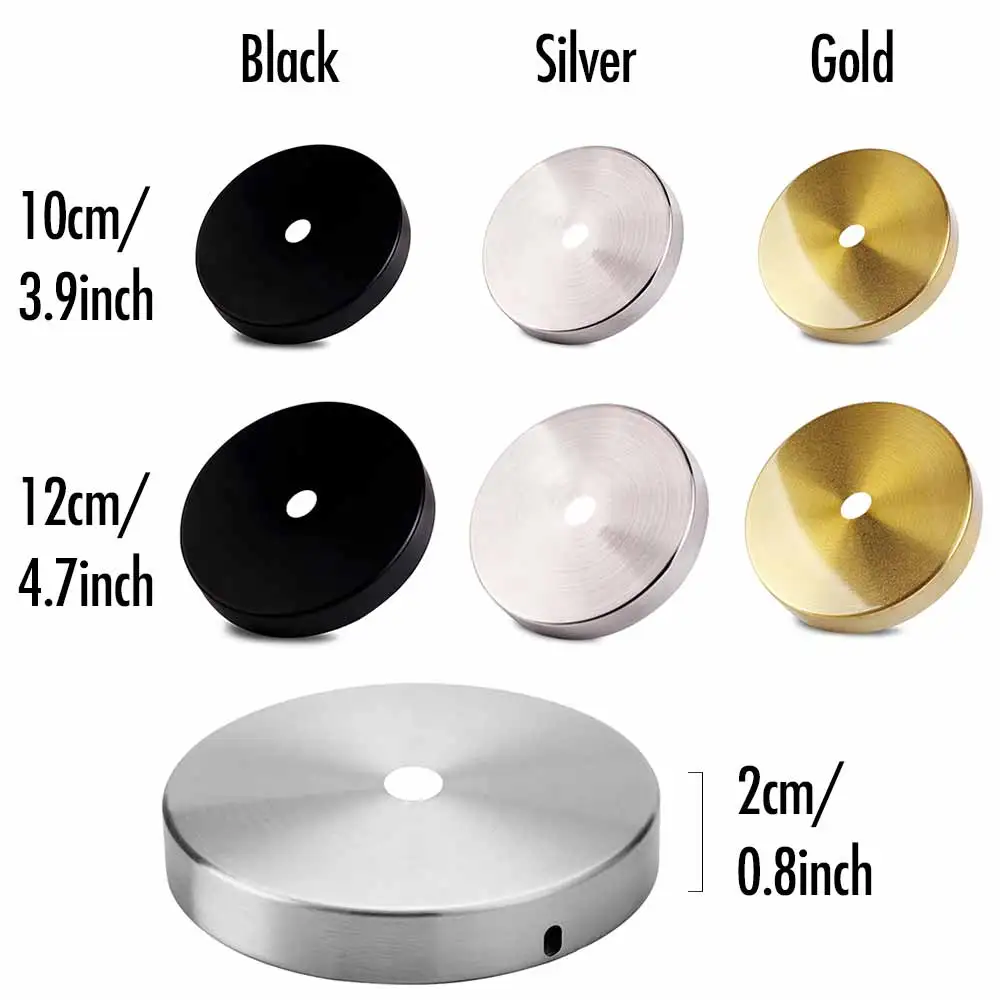

3 Color & 2 Size Clock Dials

Material: Metal
Color: Silver, Black, Gold
Clock Dial Diameter: 10cm (3.9inch), 12cm (4.7inch)
Clock Dial Thickness: 2cm (0.8inch)

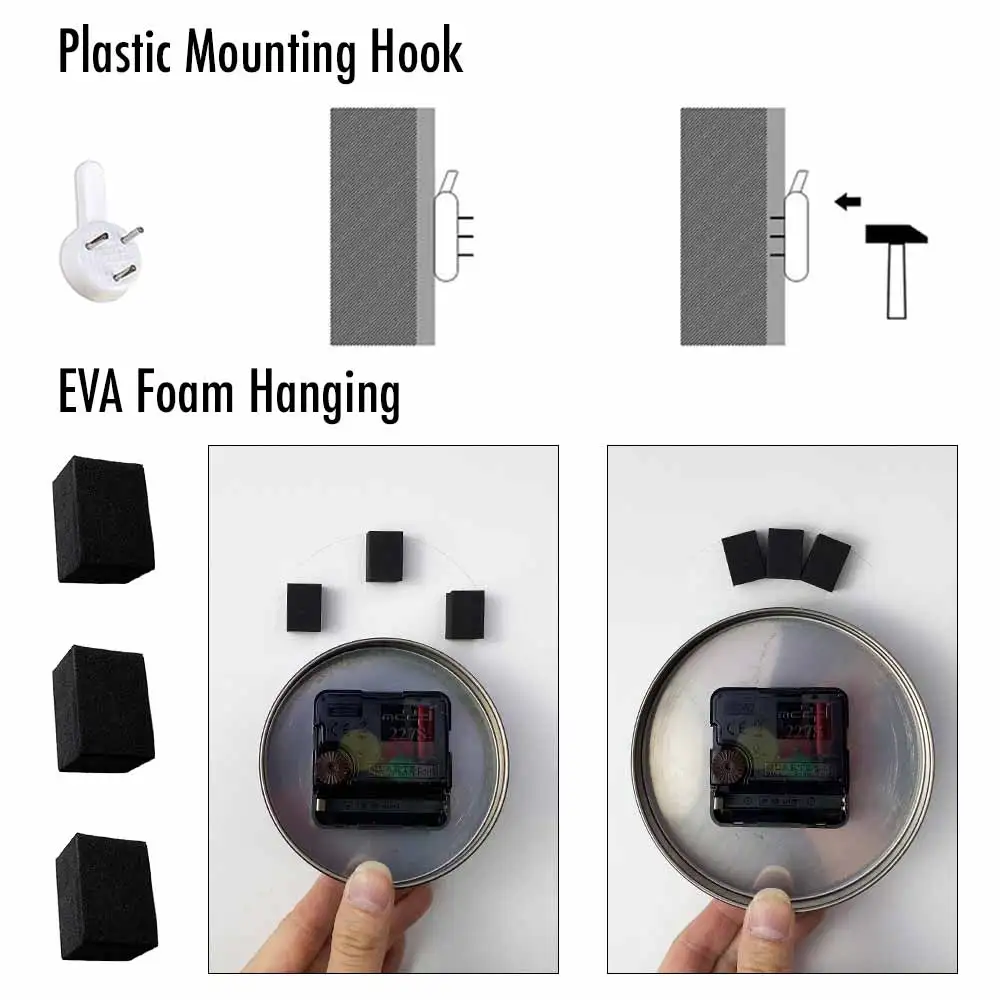

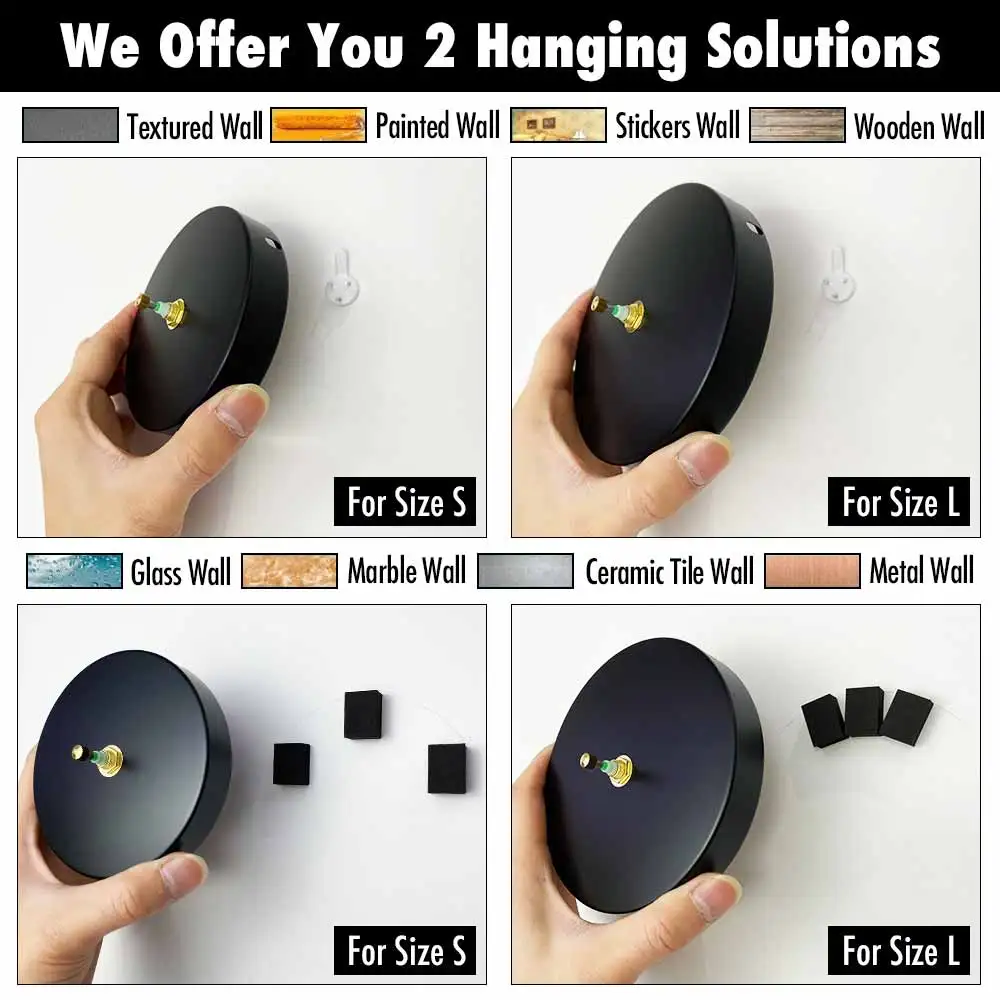

We Offer You 2 Hanging Solutions

For textured wall, painted wall, stickers wall, wooden wall, you can use plastic mounting hook.
For glass wall, marble wall, ceramic tile wall, metal wall, you can use EVA foam hanging.

Usage of Hanging Method

The following methods are for reference only, also get creative with yours for sure.

About Template Paper Ruler

The scale on the ruler represents the diameter of the wall clock that can be made.
Not the length of the ruler itself.
110cm (43.4inch) is the maximum diameter of a wall clock that this ruler can make.
Of course your creativity is unlimited.

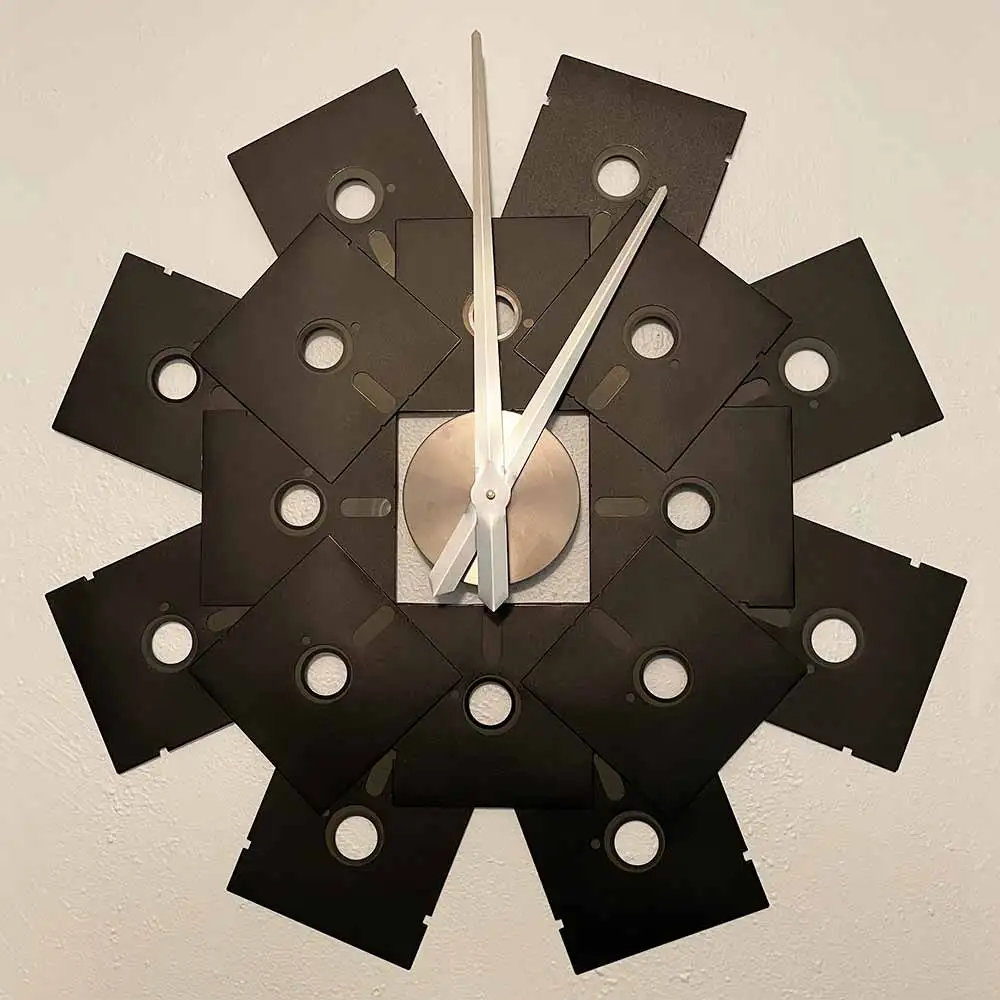

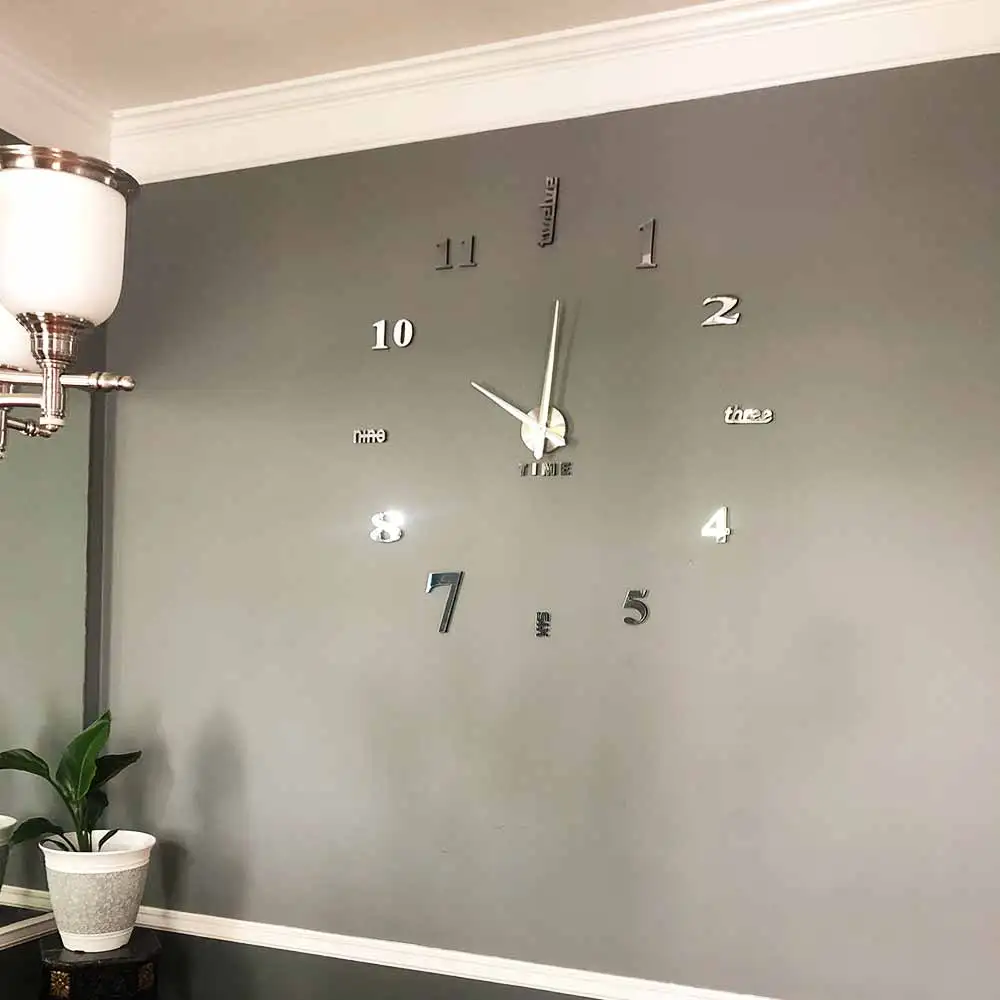

Modern Wall Centerpiece

Give your wall character with a modern clock that can stand as a centerpiece. MCDFL DIY clock kit has an open design with just minute and hour hands, this clock will steal the show. You can design your clock and room according to your habits, or share your design process with friends and family. Easy and simple design with mute sweep movement, introducing from high-technology which maximum reducing power consumption and effectively extending the life of the movement. No harm to the environment and health.

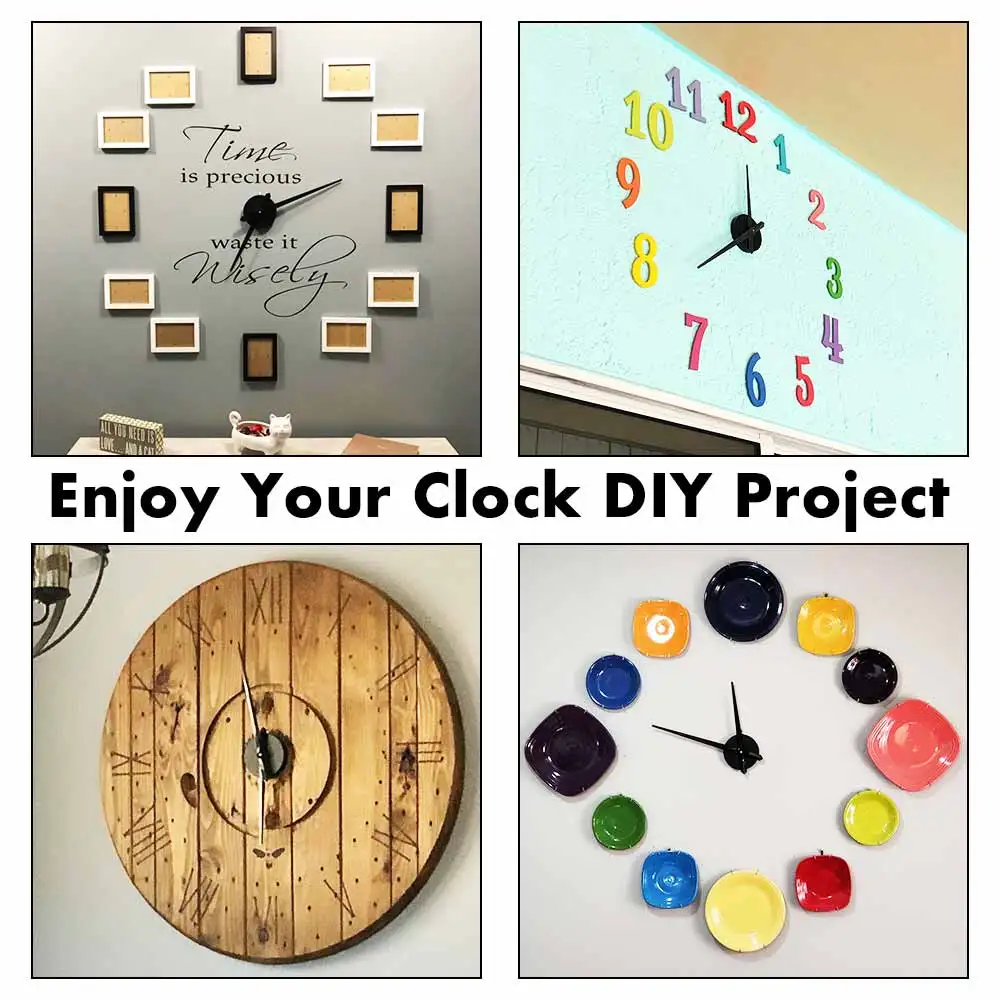

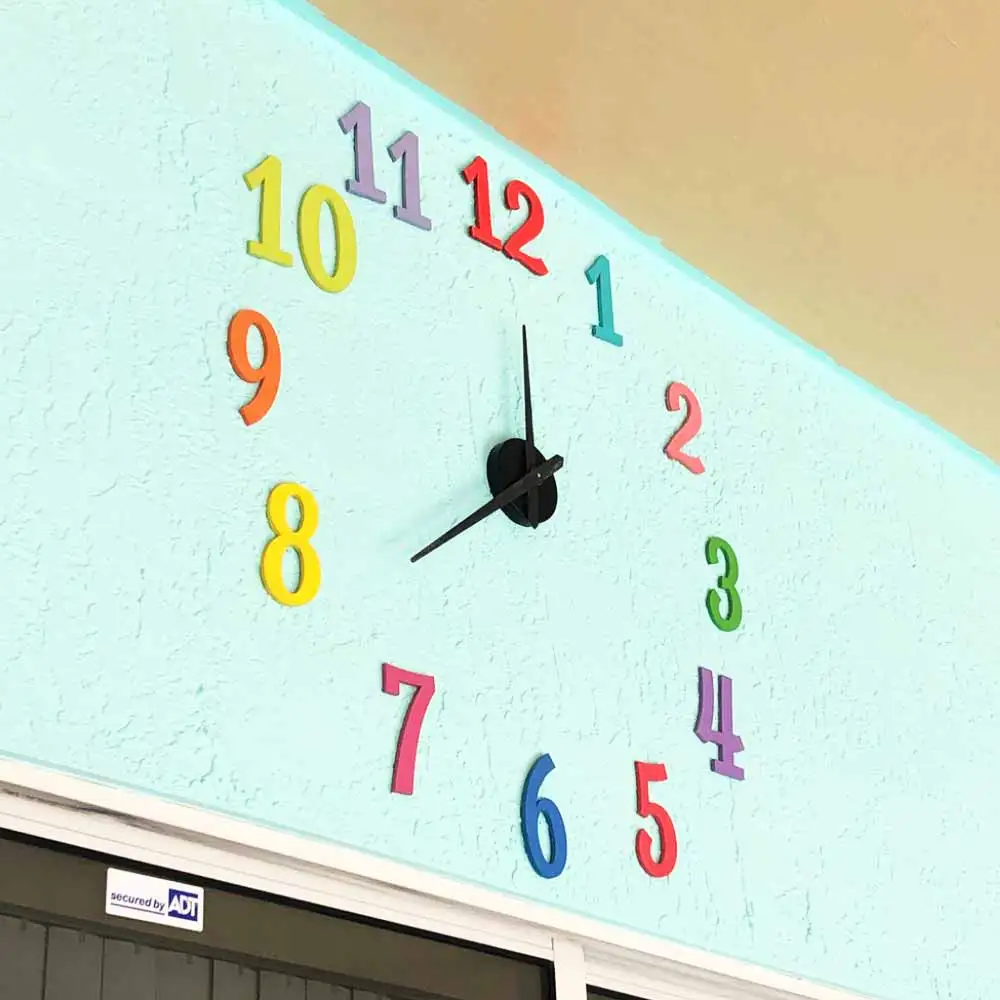

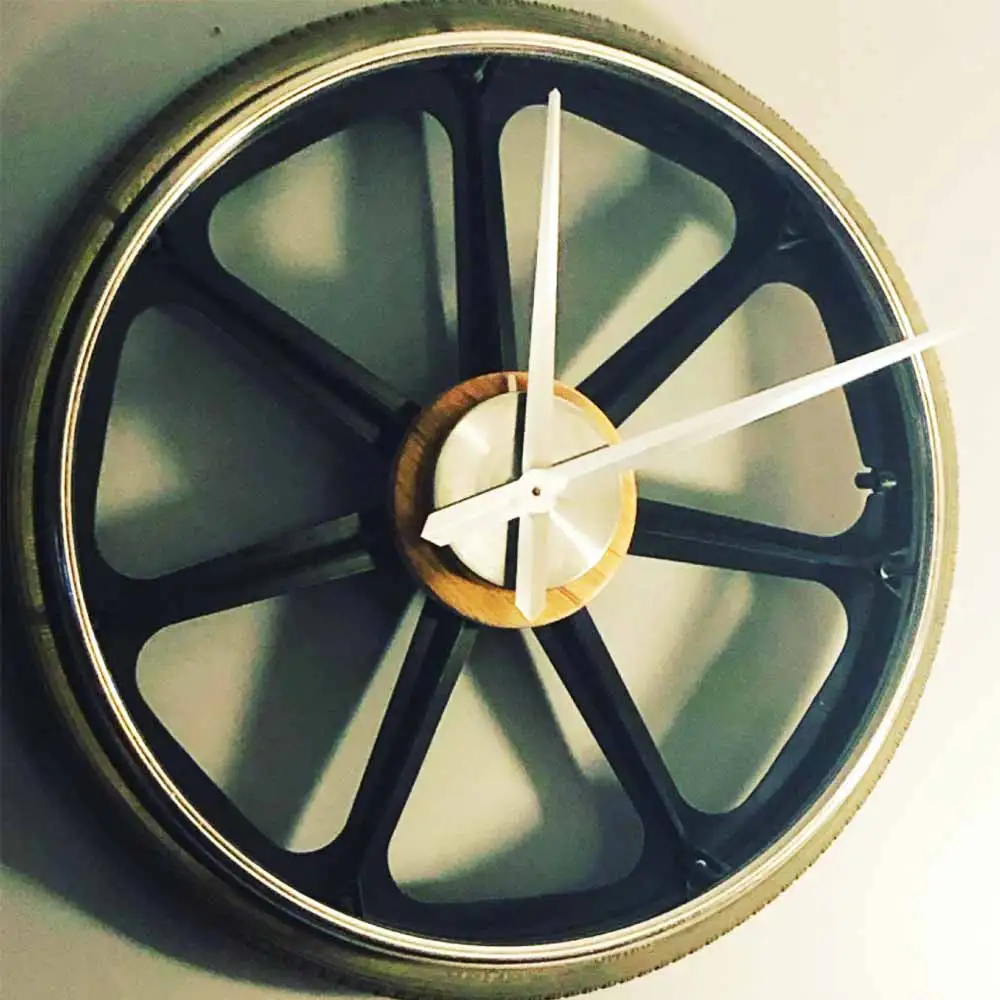

Exciting Clock DIY Project

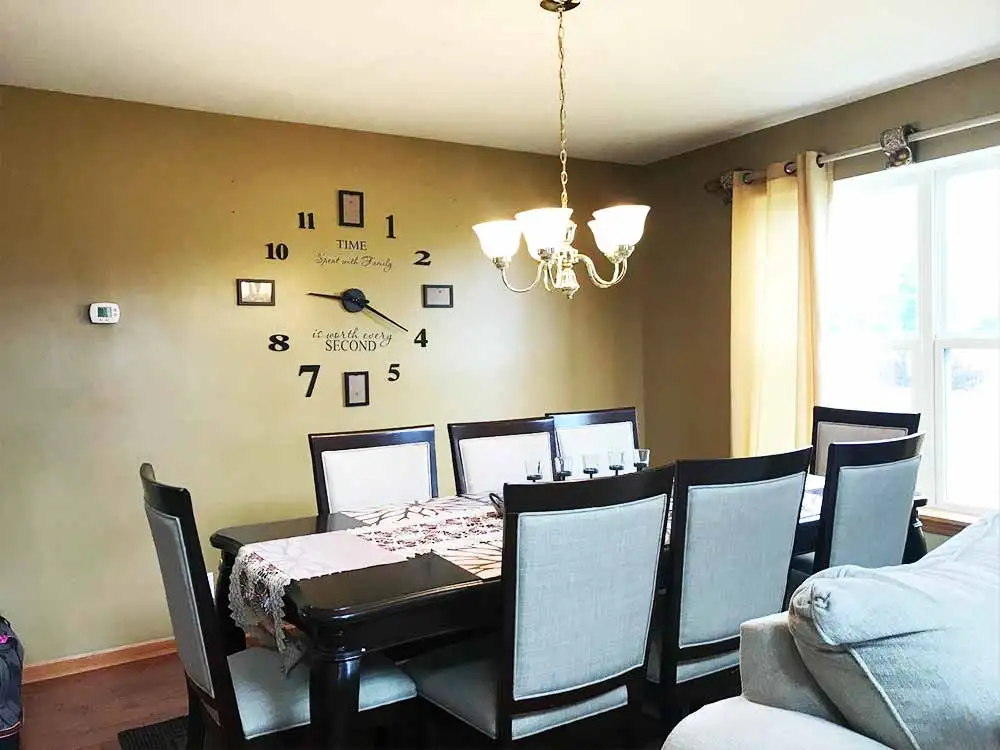

Roll up your sleeves and enjoy the DIY process. Ornate set of 3 colors and 2 different size clock parts for your options, create your own DIY craft clock, minimalist wall clock as a gift, frameless theme clock, and family photo wall clock. Applicable to cross-stitch, three-dimensional embroidery; Suitable for quartz clock repairing, replacing or making a clock Large clock hands also can be used as a wall decoration.

Adjust it to Your Liking

DIY wall clock with adjustable diameter from 60cm (23.6inch) to 110cm (43.3inch). That’s enough room to adjust the size of the entire piece according to your liking or the needs of your wall. Complete accessories, easy to install (please follow the instructions). A beautiful idea to fill an empty wall. Buy it now and enjoy the happy time of DIY with your family.

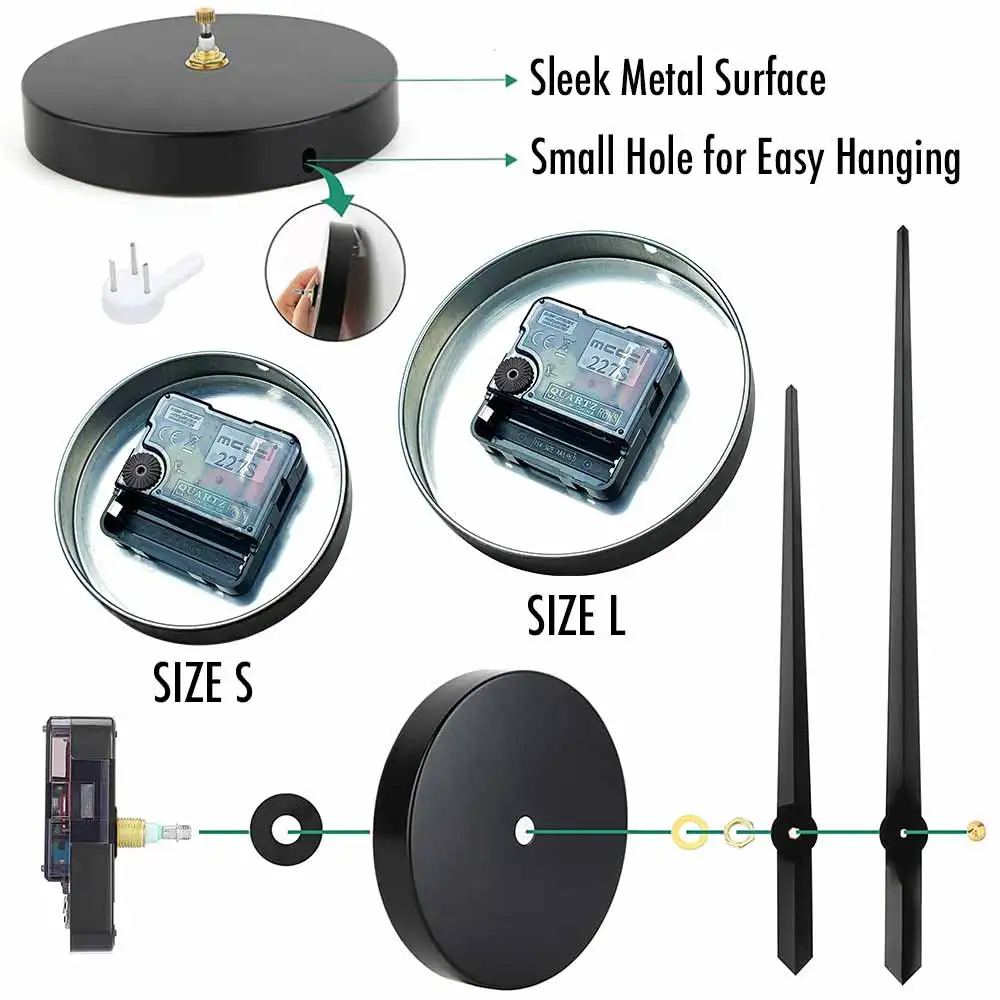

Mechanism Installation

1. Place metal hook over shaft.
2. Place plastic washer over shaft.
3. Insert shaft through clock face.
4. Place dial plate brass washer over shaft.
5. Attach dial fixing brass hex nut.
6. Gently press hour hand onto shaft at 12:00 position.
7. Place minute hand over shaft at 12:00 position.
8. Gently screw minute nut in place.

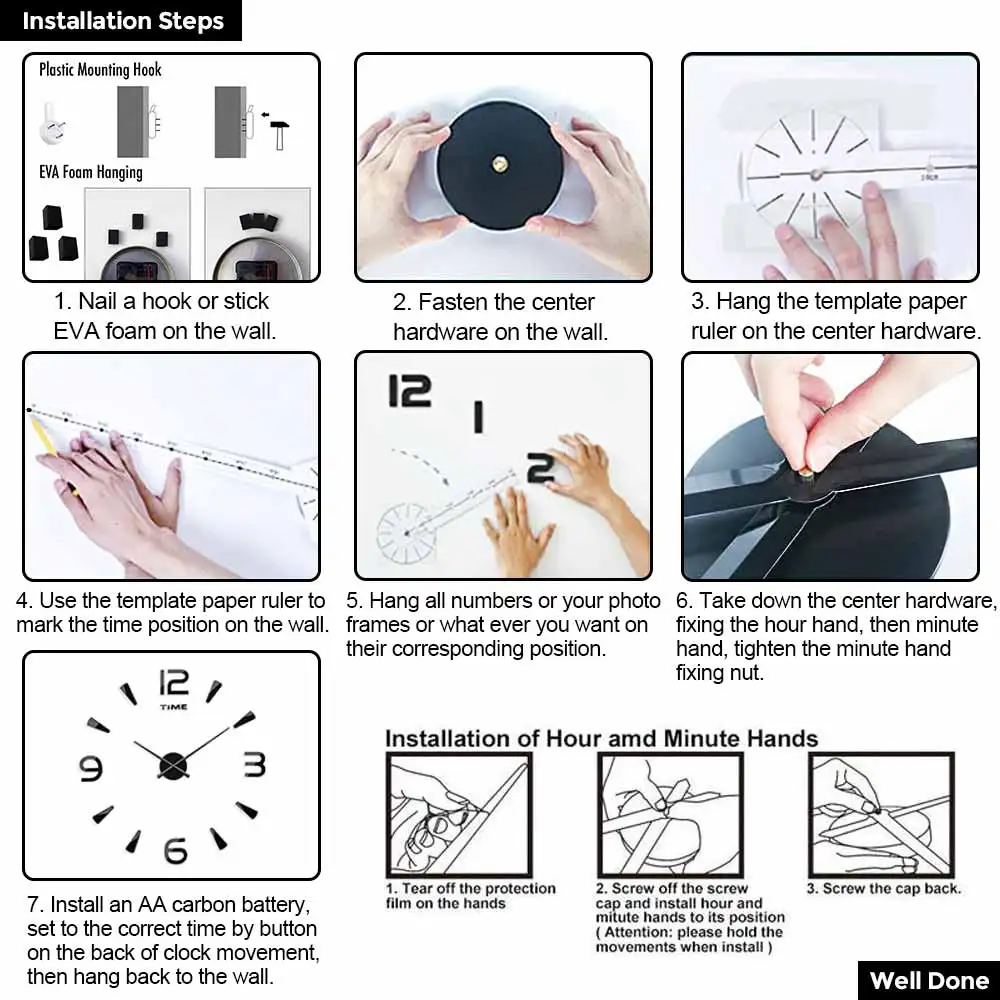

Installation Steps

1. Nail a hook or stick EVA foam on the wall.
2. Fasten the center hardware on the wall.
3. Hang the template paper ruler on the center hardware.
4. Use the template paper ruler to mark the time position on the wall.
5. Hang all numbers or your photo frames or what ever you want on their corresponding position.
6. Take down the center hardware, fixing the hour hand ,then minute hand, tighten the minute hand fixing nut. (Tips: press the clock hands into the clock axle and point at 12 o’clock)
7. Install an AA carbon battery, set to the correct time by button on the back of clock movement, then hang back to the wall.

Well done! You can enjoy your art-work now
Tip: It’s better to ask a second person’s opinion to help with the leveling and spacing of the numbers from one another.

Installation Tips

1. Please mark the position by using the template paper ruler (included), then stick what you need onto the wall.
2. Do not attach the clock hands onto the base before you finish other steps.

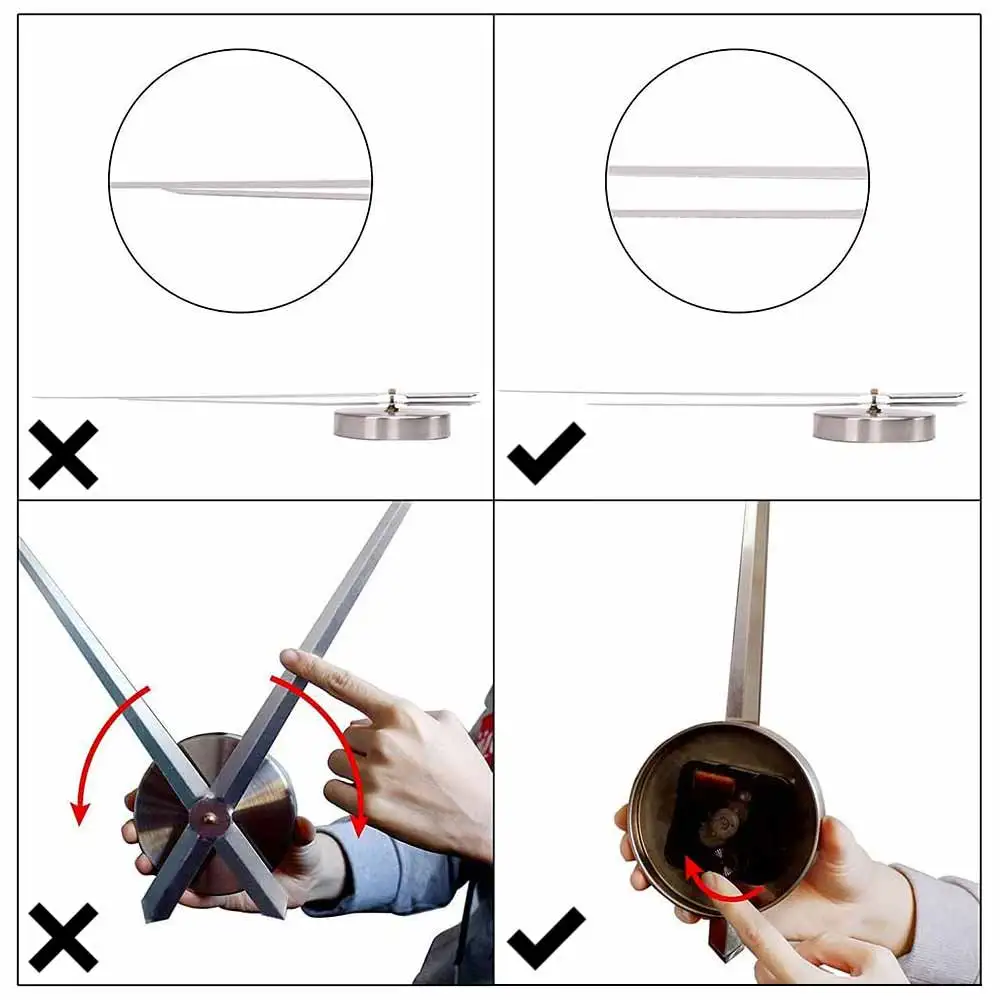

3. Keep clock hands parallel and screw the cap tightly without gap.
4. Don’t tune the time using your hands, it might impair the clock mechanism. There are control buttons on the back of the centerpiece, please use them.

Kindly Note

– The hour and minute hands had a protective plastic coating that needs to be carefully removed.
– Be careful not to bend the hands with too much pressure.
– Clock hands are made of aluminum with high ductility, you can straight it easily if bends.
– Do not tighten the brass hex nut too tight.
– Press hard to get all clock hands in place.
– Please do not use alkaline battery and rechargeable battery, or they will damage the clock movement.
– Indoor home decoration, no waterproof function, please don’t it use outdoor.

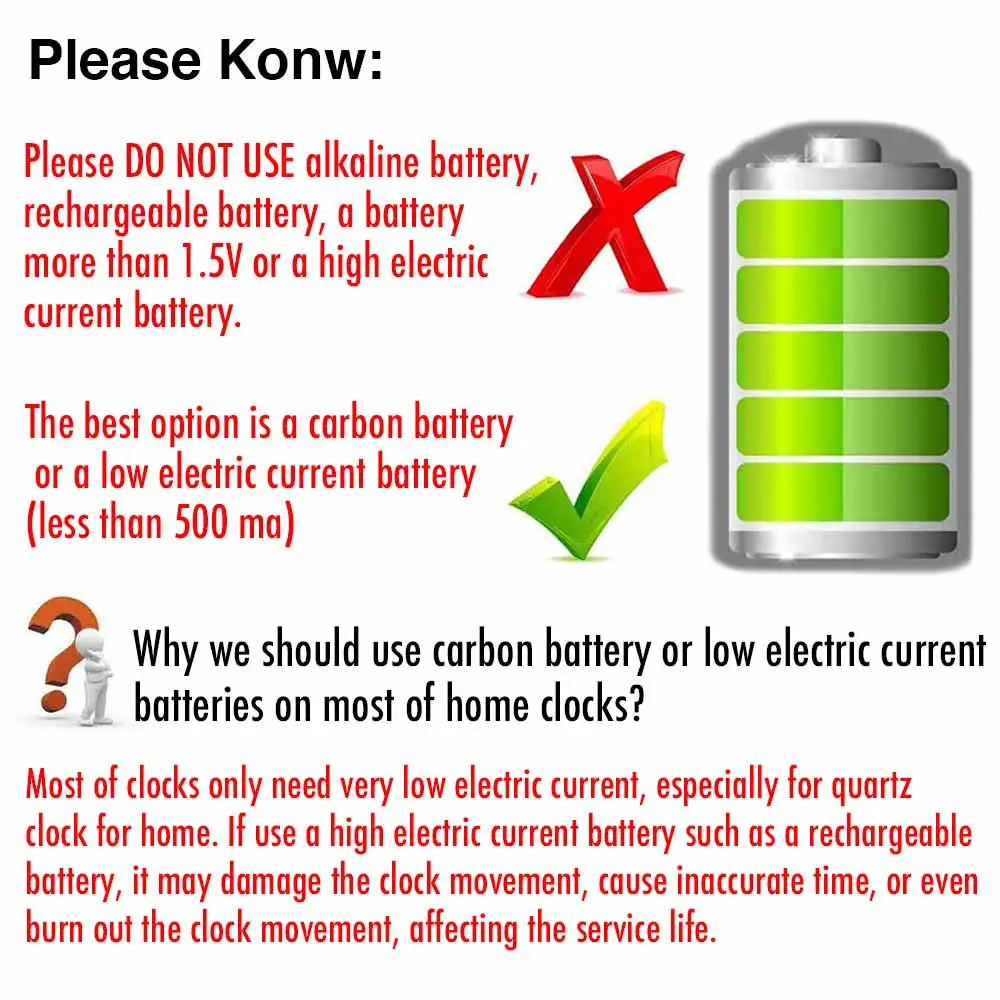

About Battery

Battery Type: 1.5V AA size (IEC R6) Carbon Battery 1 piece (Not Included)

Please DO NOT USE alkaline battery, rechargeable battery, a battery more than 1.5V or a high electric current battery.
The best option is a carbon battery or a low electric current battery (less than 500 ma)

Why we should use carbon battery or low electric current batteries on most of home clocks?
Most of clocks only need very low electric current, especially for quartz clock for home. If use a high electric current battery such as a rechargeable battery, it may damage the clock movement, cause inaccurate time, or even burn out the clock movement, affecting the service life.

Buyer Questions & Answers

Question: Can this be put on an outdoor clock?
Answer: No, this clock indoor use only. It doesn’t have waterproof function, so it cannot use in outdoor.

Question: Can someone tell me how far it sticks out from the wall?
Answer: about 4cm (1.58 inch).

Question: Can the round metal cover be removed so the clock work can be used with the hands without the round metal cap?
Answer: Yes, it also can work without the metal cover.

Question: Is it “noisy”? I was planning to put it in the bedroom..
Answer: Sweep motion with non ticking sound and provide you with a quiet environment.

Question: Does the clock hands come assembled together on the wall mount?
Answer: Clock hands are not assembled for shipping, but they press onto the shaft very easily.

Question: How does it attach to the wall? If it’s using a self adhesive sticker, any problems with it adhering to drywall?
Answer: Put a nail into the wall and hang the clock. there is a hook at at the back side of clock. If you don’t want to punch holes in the wall, you can also use EVA foam hanging and stick to the wall.

Question: How do you know where to position the frames? Does it come with an outline of how to position them to show accurate time?
Answer: Seller give a template paper ruler tool to confirm the location of the time position.

Question: How do you set it since it does not come with a guide? I get 12, 3, 6 and 9 but what about the intervals in between?
Answer: There is a template paper ruler tool to assist.

Question: Is this a high torque mechanism?
Answer: Yes, high torque I shaft clock mechanism, non ticking
